• JIAXING VIIPLUS INTERNATIONAL TRADING CO.,LTD
    Дэвид от Канады
    Наш импорт компании бронзовое глайтлагер от фарфора вииплус, команды вииплус профессиональной убеждается что зазор таможни всегда ровны. Они предусматривают точную классификацию бронзовой буксы, регулируют всю обработку документов, мы получали самосмазочные бронзовые буксы. Они смотрят хорошо сделанными и высококачественное.
  • JIAXING VIIPLUS INTERNATIONAL TRADING CO.,LTD
    Валерия от Калифорнии
    Мы импортируем бронзовое глайтлагер от Китая к под инкотерм ОБМАНЫВАЕМ Шанхай, иногда самолетом. вииплус очень хороший бронзовый поставщик глайтлагер, они очень профессиональны и терпеливый, после того как мы сообщаем новый порядок, они будьте глайтлагер изготовителя бронзовое во времени и дать нам расписание, и после этого нам как раз нужно получить бронзовые части
  • JIAXING VIIPLUS INTERNATIONAL TRADING CO.,LTD
    Маргаритка от Германии
    Самые лучшие поверхностные финиши для подшипника рукава, более плотной концентричности, и единообразия материала бронзовых букс. Хороший поставщик стандартного дюйма и метрических подшипников и втулок рукава от фарфора. https://www.bronzelube.com/
Контактное лицо : Tiffany
Номер телефона : +86 18258386757
whatsapp : +8618258386757

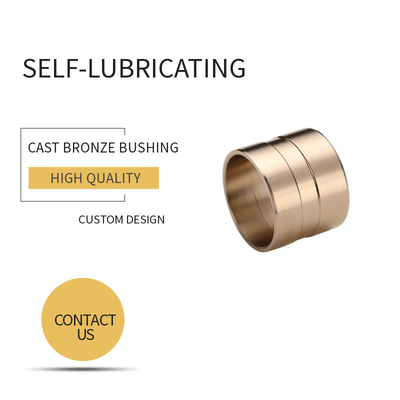

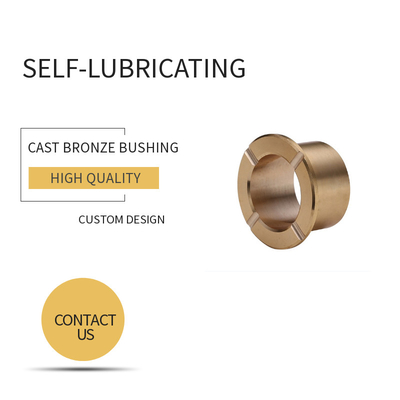

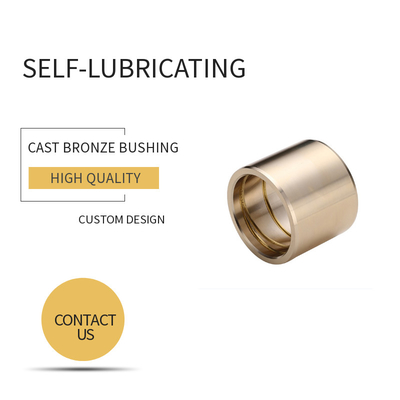

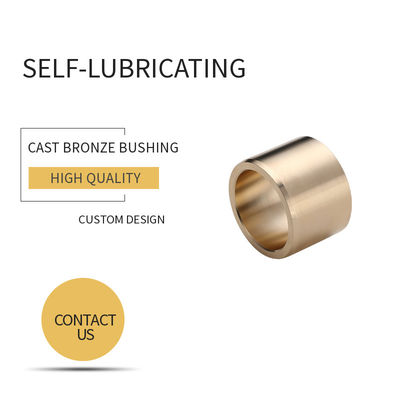

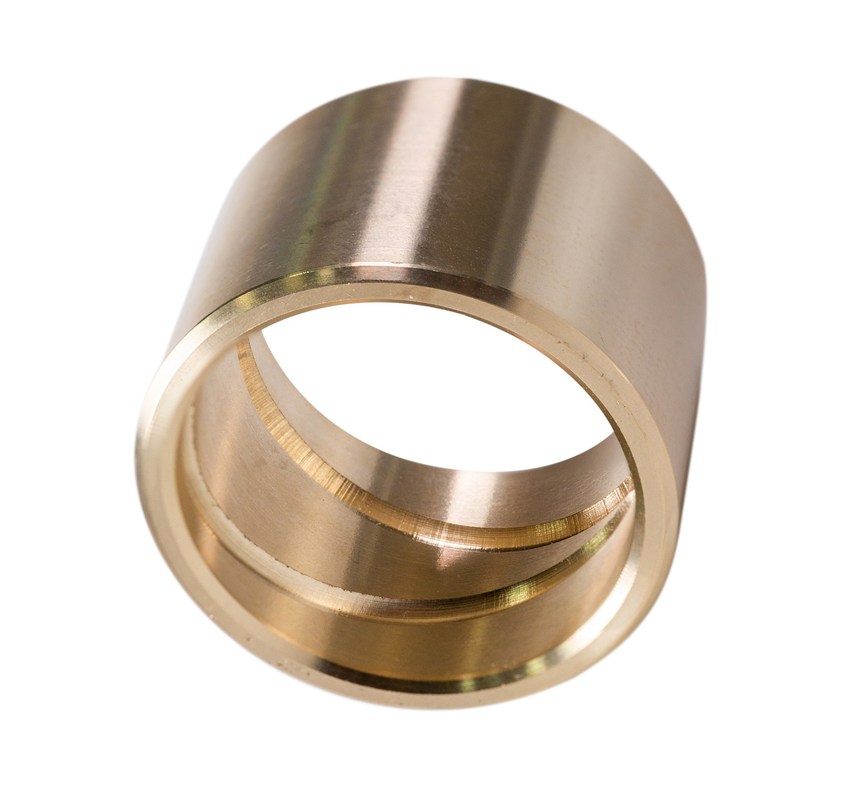

Метрический размер CuSn6Zn6Pb3 бросил бронзовые буксы

Место происхождения СДЕЛАННЫЙ В КИТАЕ
Фирменное наименование VIIPLUS
Сертификация ISO 9001
Номер модели CuSn6Zn6Pb3 бросило бронзовую буксу
Количество мин заказа Могущий быть предметом переговоров
Цена Negotiable
Упаковывая детали СЛУЧАЙ ДЕРЕВЯННОГО ПАЛЛЕТА КОРОБКИ ЭКСПОРТА ДЕРЕВЯННЫЙ
Время доставки 7-25 дней работы
Условия оплаты Т/Т
Поставка способности 5000000 часть/частей одна неделя

Свяжитесь я бесплатно образцы и талоны.

whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Если вы имеете любую заботу, то мы предусматриваем 24-часовую интерактивную справку.

x
Подробная информация о продукте
Деталь подшипники бросания бронзовые Тип бросьте бронзовые подшипники рукава
особенность Бронзовые части финиша Размер Метрический размер, или подгонять размер
Материал Бронзовое CuSn6Zn6Pb3 Форма Цилиндрический, подгонянный
Носить цену по прейскуранту завода-изготовителя втулки tiffany@viiplus.com Самосмазочный нося изготовитель втулки https://www.viiplus.com/
Высокий свет RG7 бросило бронзовые буксы, наградные брошенные бронзовые буксы, бронзовые буксы олова, 2,1090 CuSn Бросьте бронзовую буксу Втулки графита штепсельной вилки – этот продукт брошенная бронзовая букса которая была филирована и
Экспортеры поставщиков изготовителей подшипников с цельной втулкой простые подшипники. Длиной, не требующее ухода обслуживание, изготовляет втулки в различных дизайнах
Высокий свет

CuSn6Zn6Pb3 Cast Bronze Bushings

,

HB80 Cast Bronze Bushings

,

HB100 cast bronze sleeve bearings

Оставьте сообщение
Характер продукции

CuSn6Zn6Pb3 Cast Bronze Bushings,

Wide range of copper-based materials. Pre-turned or finalized ready for assembly parts. E-Cu, Bronze & Brass Alloys. Used for Bearing Cages, Sliding Bearings, Bushings.



BUSHING COD. 20082557 17*26*5.5 material ZCuZn25Al6Fe3Mn3

The machined cast bronze bushing offers technically and economically favorable bearing solutions.



Specializing In The Production Of Non-standard CuSn6Zn6Pb3 Graphite Phosphor Bronze Bearings,Graphite Copper Sleeve Special Brass Bushing made to order.



High load capacity, low weight, good resistance to corrosion.



The cast bronze bushing (or plain bearing) is a hollow cylindrical component, such as a tube, and it is usually split in two, split with one, two, or even no flange and is used for axial expansion. They are parts that are subjected to frictional forces due to rotation and are used in light, heavy or super-heavy machines and equipment.





Viiplus bearing can offer different types of bronze alloys according to lifetime, service etc.

As a leading manufacturer of self-lubricating bearings and bushings, we offer many high quality products, such as steel bronze bushings, precision steel bushings, ejector guide bushings, hardened steel bushings, bimetallic bearings, post bushings driving and so on. These products are widely used in metallurgy, automobiles, mining, petroleum, rolling mills, chemical industry, engines, ships, printing machines and plastics.





This type of cast bronze bushing hardened steel bearings is intended for heavy duty applications on construction machinery. For better performance, hardening of the bushings can be treated with a special hardening process or QPQ process to achieve excellent hardness requirements and lubrication characteristics.



Casting Phosphor Bronze Bush

Phosphor Bronze Bushes Phosphor Bronze parts Phosphor Bronze components Phosphor Bronze bushings



Providing you the best range of casting phosphor bronze bushes with effective & timely delivery.



CAST BRONZE BUSHING



SEARCHING BY CAST BRONZE BUSHING SIZE

STANDARD CAST BRONZE BUSHING CATALOG



Cast Bronze Bushing Material



The common material is like CUZN25AL5, CUSN6ZN6PB3, CUSN5ZN5PB5, CUAL10FE5NI5, CUSN12, CUSN10PB10 and so on.





Cast Bronze Bushing Size



  • Customizable



Cast bronze bushing type: bronze bushing, bronze worm, bronze plates, bronze shell, flange bronze bushing and so on.



Tolerance is much tighter than packaged bronze bushings.



HIGH QUALITY CAST BRONZE BUSHING WITH COMPOSITE PRICE



Cast Bronze Bushing,JDB-2 Solid Lubrication Bearing





Base material CuSn6Zn6Pb3
Dynanic load 60N/mm2
Base hardness HB80~100
Friction Coef. <0.15
Temp Max. 350℃
Speed limit 2m/s



Cast bronze bushing JDB-2 is made of bronze CuSn6Zn6Pb3 with graphite evenly embedded in it. It can work under low load, high temperature and middle speed, e.g. in fireplace gate, convey way of the Baking furnace, rubber machine, light industry and machine tools industry etc.



Chemical Composition



Grades Elements Percentage
Copper (CU) Remainder
Tin (Sn) 3.50-4.50%
Zinc (Zn) 0.35% max
Nickel (Ni) 0.45% max
Lead (Pb) 0.25% max
Phosphorus (P) 0.15 – 0.8%
Aluminium (Al) 0.005% max
Iron (Fe) 0.15% max



Cast Bronze Bushing Advantages



  • The highest security performance
  • To prevent the vibration and dynamic load caused by loosening
  • Easy to install and remove
  • Locking effect is not affected by lubrication
  • Regardless of the level of the pre tightening force has a good locking effect
  • Can control the level of pre tightening force
  • The same temperature characteristics with the standard bolt / nut
  • Can be used repeatedly



Cast Bronze Bushings with Solid Lubricant Inserts



  • Maintenance-free bearing material for heavy duty applications
  • Excellent performance under high loads and intermittent operation
  • Also available with graphite inserts for temperatures above 250°C



Bronze Bushing Groove Type

bronze bushing groove type



AVAILABILITY



Cast bronze bushing forms made to order:

cylindrical bushes, flanged bushes, thrust washers, sliding plates, pintle bearings, half-bearings, axial and radial segment rings, self-aligning spherical bearings, customized bearing designs



Our Cast Bronze Bushing High Quality


- Control quality and price: complete service from the casting of the raw material to the finished product, strictly control the quality and cost of all links.
- Advanced test equipment: Spectrometer imported from Germany - component warranty; Universal testing machine - test tensile strength, elongation and yield strength; Brinell hardness tester - hardness test.
- Customization: we can provide customized product services according to the design and material requirements.





Cast Bronze Bushing Application



Used in many industries:Excavators, Cranes and some crucial parts of construction machinery and etc.



It is not unusual to come across a cast bronze bushing that has worked satisfactorily for decades.
In fact, a properly designed and maintained bronze bearing will often exceed the life of the equipment it serves.
The relatively high hardness and good impact resistance of the cast bronze bushing make it widely used in mechanical engineering,earthmoving equipment, hydraulic cylinders, lifting equipment, pumps and other bearings.





cast bronze bushing application - engineering machinery
